China Veterinary Implants Manufacturers
3.5mm Titanium Biological Healing Locking Plates
Biological Healing Locking Plate
1 piece per package
Raw Material: Ti-6Al-4V
Plate width: 11.0mm, thickness: 3.3mm
Non-sterilization product
3.5mm Titanium Biological Healing Locking Plates
What Are Biological Healing Locking Plates?
Biological healing, or minimally invasive osteosynthesis, focuses on creating a stable mechanical environment for bone healing without compromising the biology of the fracture site. Our 3.5mm locking plate system is a cornerstone of this approach.
Unlike traditional compression plates, locking plates function as internal-external fixators. The screws lock securely into the plate at a fixed angle, creating a single, stable construct. This eliminates the need for perfect plate contouring and prevents compression of the periosteum underneath, crucial for maintaining blood flow.
Key Benefits & Features of Our 3.5mm Titanium System
1. Superior Biomechanical Stability
-
Angular Stability: Locking screws provide unparalleled resistance to shear and torsional forces, preventing screw toggling and pull-out, especially in osteoporotic or metaphyseal bone.
-
Titanium Construction: Offers an excellent strength-to-weight ratio, biocompatibility, and reduced stress shielding compared to stainless steel. Titanium’s elasticity is closer to that of bone, promoting more physiological healing.
2. Designed for Biological Healing
-
Low-Profile Design: Minimizes soft tissue irritation and implant prominence.
-
Reduced Plate-Bone Contact: Specific design geometries lessen the “footprint” of the plate on the bone, preserving periosteal circulation.
-
Ideal for MIPO: The system is perfectly suited for Minimally Invasive Plate Osteosynthesis (MIPO) techniques, allowing for remote plate insertion through small incisions.
3. Surgical Versatility & Efficiency
-
Comprehensive Set: Available in a range of lengths and configurations (straight, T-plates, L-plates) to address various fractures: long-bone fractures (femur, tibia, humerus, radius/ulna), corrective osteotomies, and arthrodeses.
-
Combination Hole Technology: Many plates feature a combination of locking holes and dynamic compression unit (DCU) holes, offering the surgeon flexibility to apply compression at the fracture site if needed, while utilizing locking stability elsewhere.
-
Instrument Compatibility: Designed for intuitive use with specialized guides and instrumentation for accurate, reproducible screw placement.
Indications for Use in Veterinary Orthopedics
Our 3.5mm system is indicated for the stabilization of fractures and orthopedic conditions in medium to large breed dogs (typically >20kg), including:
-
Diaphyseal and metaphyseal fractures of long bones
-
Juxta-articular fractures
-
Delayed unions or non-unions
-
Corrective osteotomies (e.g., for angular limb deformities)
-
Veterinary arthrodesis procedures (carpal, tarsal)
Why Choose Our Veterinary Locking Plate System?
-
Veterinary-Specific Design: Engineered with the anatomical challenges of canine patients in mind.
-
Promotes Faster Healing: By respecting biology, the system encourages natural callus formation and bone union.
-
Enhanced Patient Comfort: Low-profile titanium implants reduce post-operative irritation, supporting a smoother recovery.
-
Reliable Long-Term Results: Built to provide stable fixation throughout the entire healing process without implant failure.
Technical Specifications
-
Material: Medical-Grade Titanium Alloy (Ti-6Al-4V)
-
Plate Thickness: Optimized for strength without unnecessary bulk.
-
Screw Compatibility: Uses dedicated 3.5mm self-tapping locking screws. Available in various lengths.
-
Sterilization: Supplied non-sterile for hospital sterilization or available in sterile-packed options.
Ready to integrate biological healing principles into your surgical practice?
Contact our veterinary surgical specialists today to learn more about the 3.5mm Titanium Biological Healing Locking Plate system, request a detailed catalog, or discuss your specific case needs. Explore our full range of veterinary orthopedic implants and instruments to equip your practice for excellence.
Showing 1 - 7 out of 7
Page 1 out of 1
| Product Photo | Price | Gap Distance | Total Length | Quantity / per pack | Action | Quote Request | |
|---|---|---|---|---|---|---|---|
 |
|
40mm
|
109mm
|
|
|||
|
|
|
53mm
|
122mm
|
|
|||
|
|
|
66mm
|
135mm
|
|
|||
|
|
|
79mm
|
148mm
|
|
|||
|
|
|
92mm
|
161mm
|
|
|||
|
|
|
105mm
|
174mm
|
|
|||
|
|
|
118mm
|
187mm
|
|
| Weight | 1 kg |
|---|---|
| Dimensions | 21 × 11 × 6 cm |
| Gap Distance | 40mm, 53mm, 66mm, 79mm, 92mm, 105mm, 118mm |
| Total Length | 109mm, 122mm, 135mm, 148mm, 161mm, 174mm, 187mm |
You may also like…
-
2.7/3.5mm Cortical and Locking Screws Box
Login or RegisterView prices!Select options This product has multiple variants. The options may be chosen on the product page -

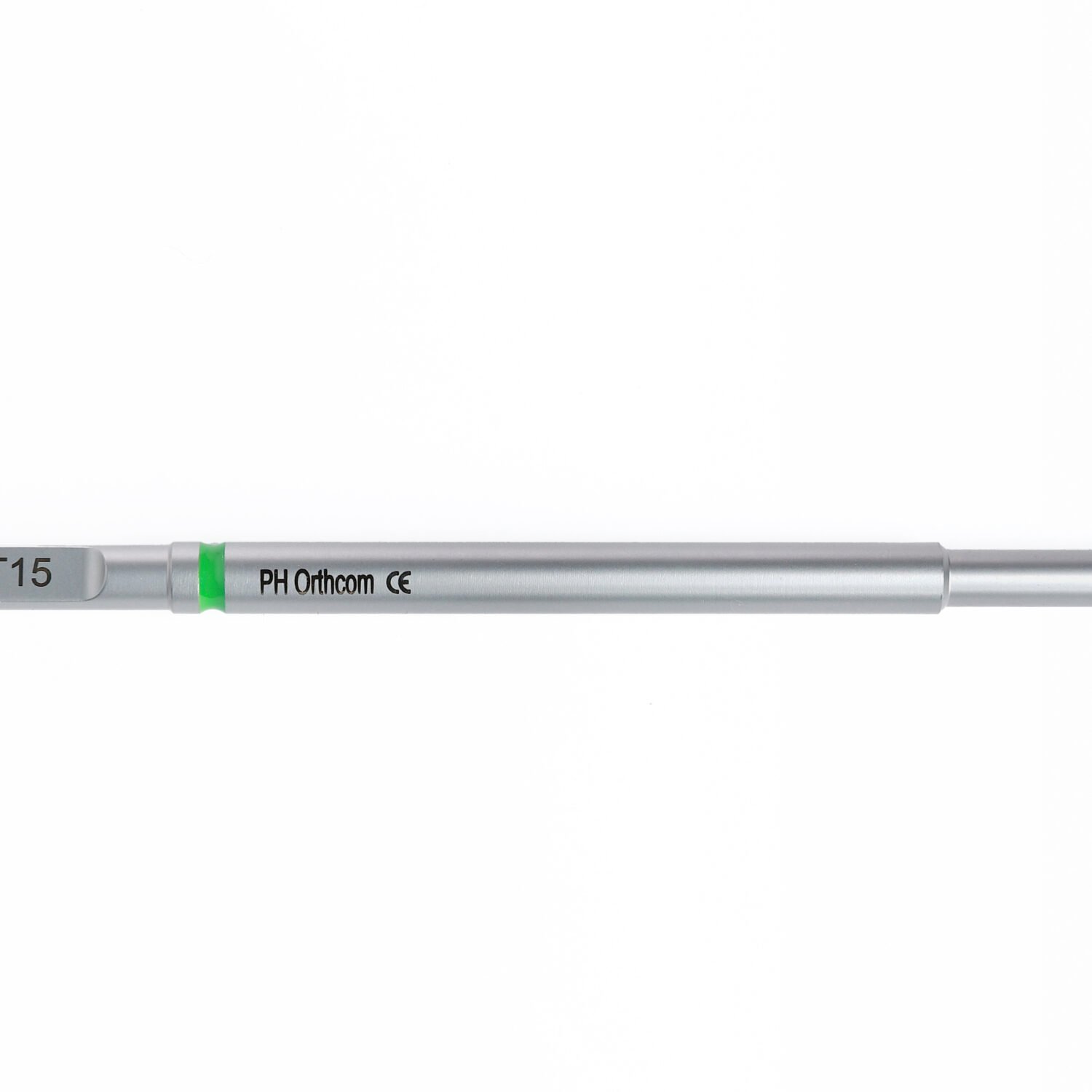

Quick-fit Stardrive Screwdriver Shaft – T15
