Acetabular Plate

Acetabular Plate

+86 139 1800 7750

Acetabular plate provides a rapid solution for repairing acetabular fractures in small animals. Pre-contoured plate designed to fit the dorsal acetabular surface, which helps facilitate accurate reduction of acetabular fractures. The rounded plate end design reduces the potential of soft tissue irritation. Cortical screws can be placed at variable angles via round holes to avoid interference with other screws and penetrating the hip joint. The 1.5 and 2.0 mm plates are designed with 4 holes to allow enough purchase on both side of the fracture. There is plenty of room on the middle of the small plate to cover the fracture line without a screw hole.

Indications: pelvic fracture repair: iliac fractures, acetabular fractures, pelvic rim fractures

Product Code

Product Picture

Specification

Price

AP1522

1.5 mm Acetabular Plate

holes 2+2


Width 4.1mm, Thickness 1.2mm, Total Length 19.3mm

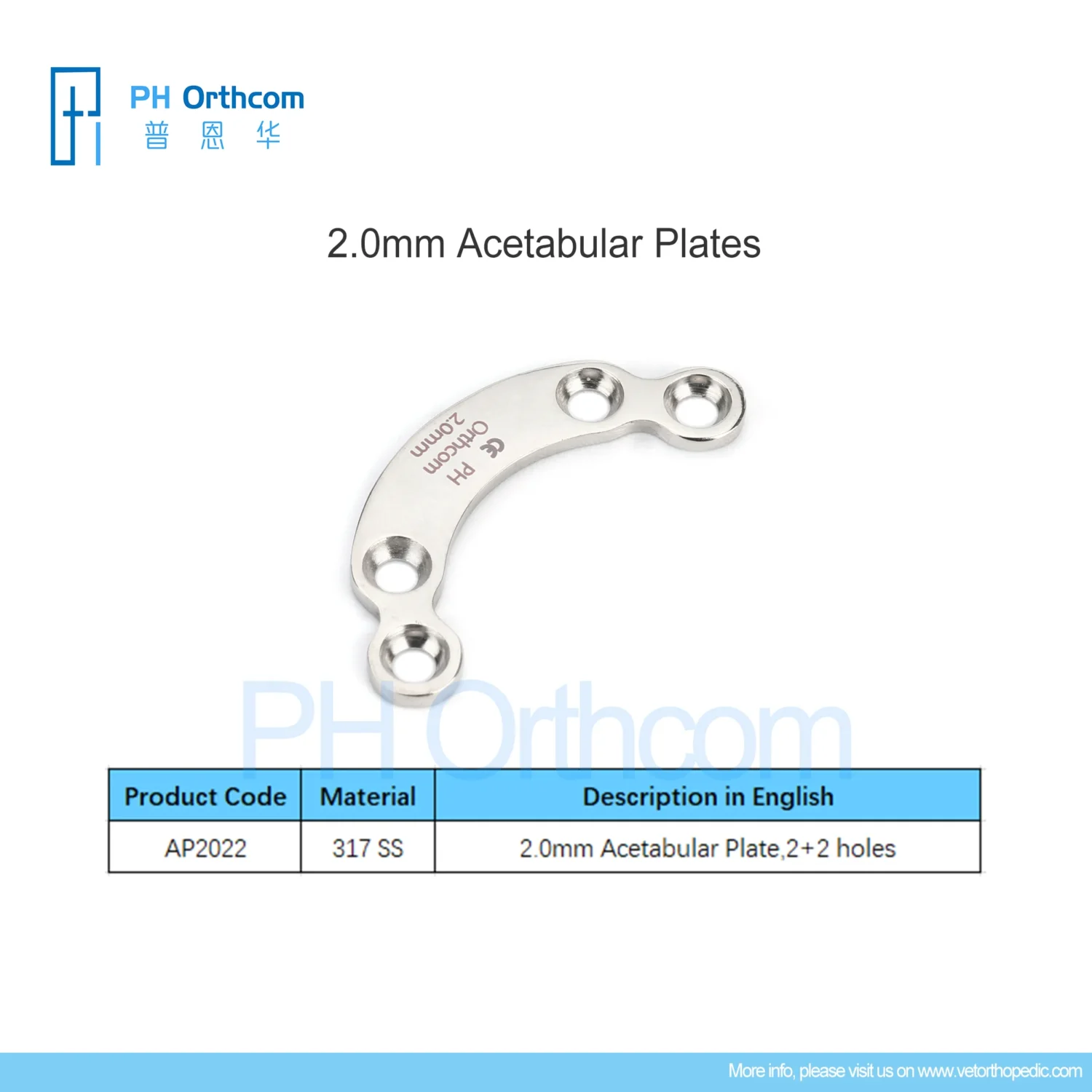

AP2022

2.0 mm Acetabular Plate

holes 2+2


Width 5.0mm, Thickness 1.2mm, Total Length 26.7mm

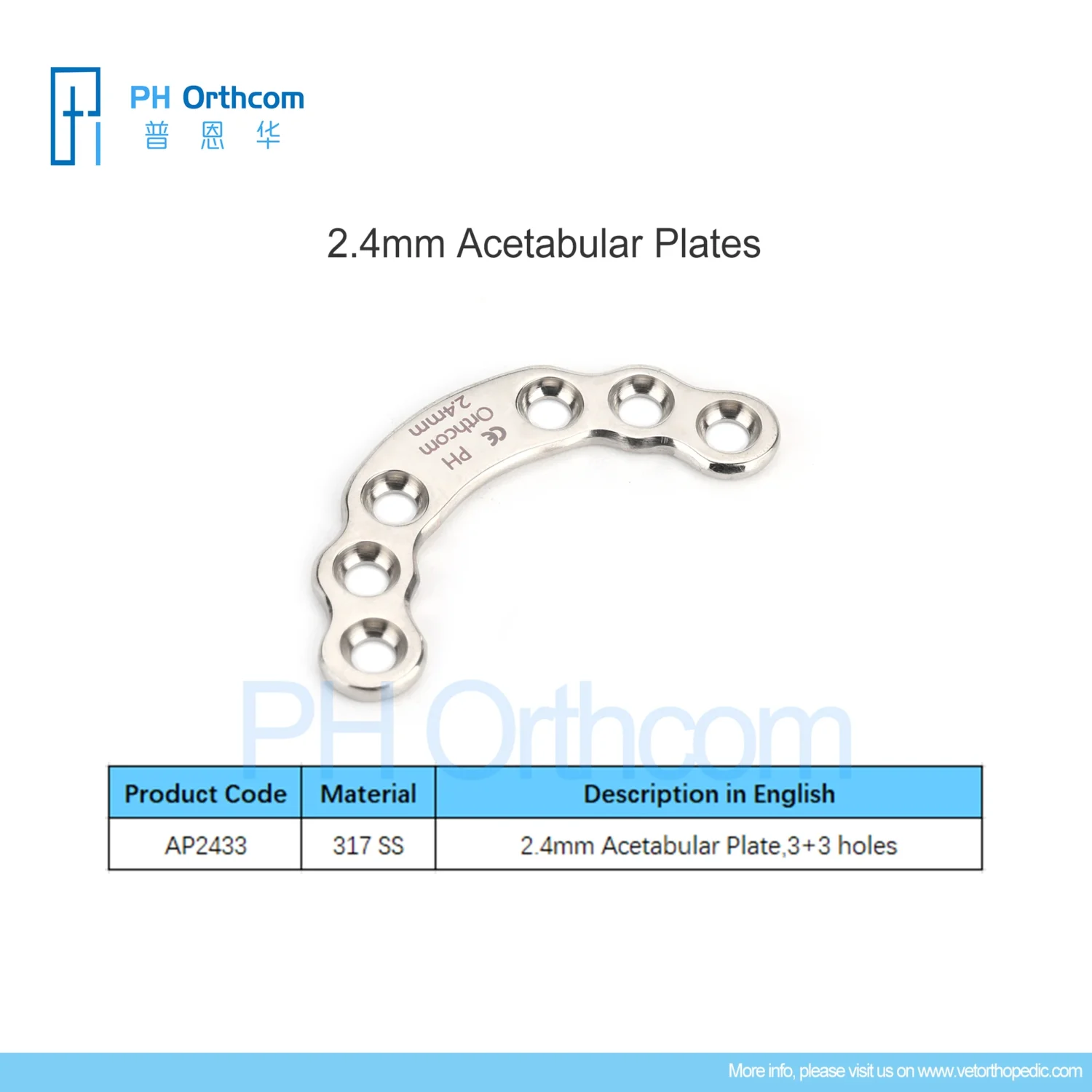

AP2433

2.4 mm Acetabular Plate

holes 3+3


Width 6.5mm, Thickness 1.5mm, Total Length 33.3mm

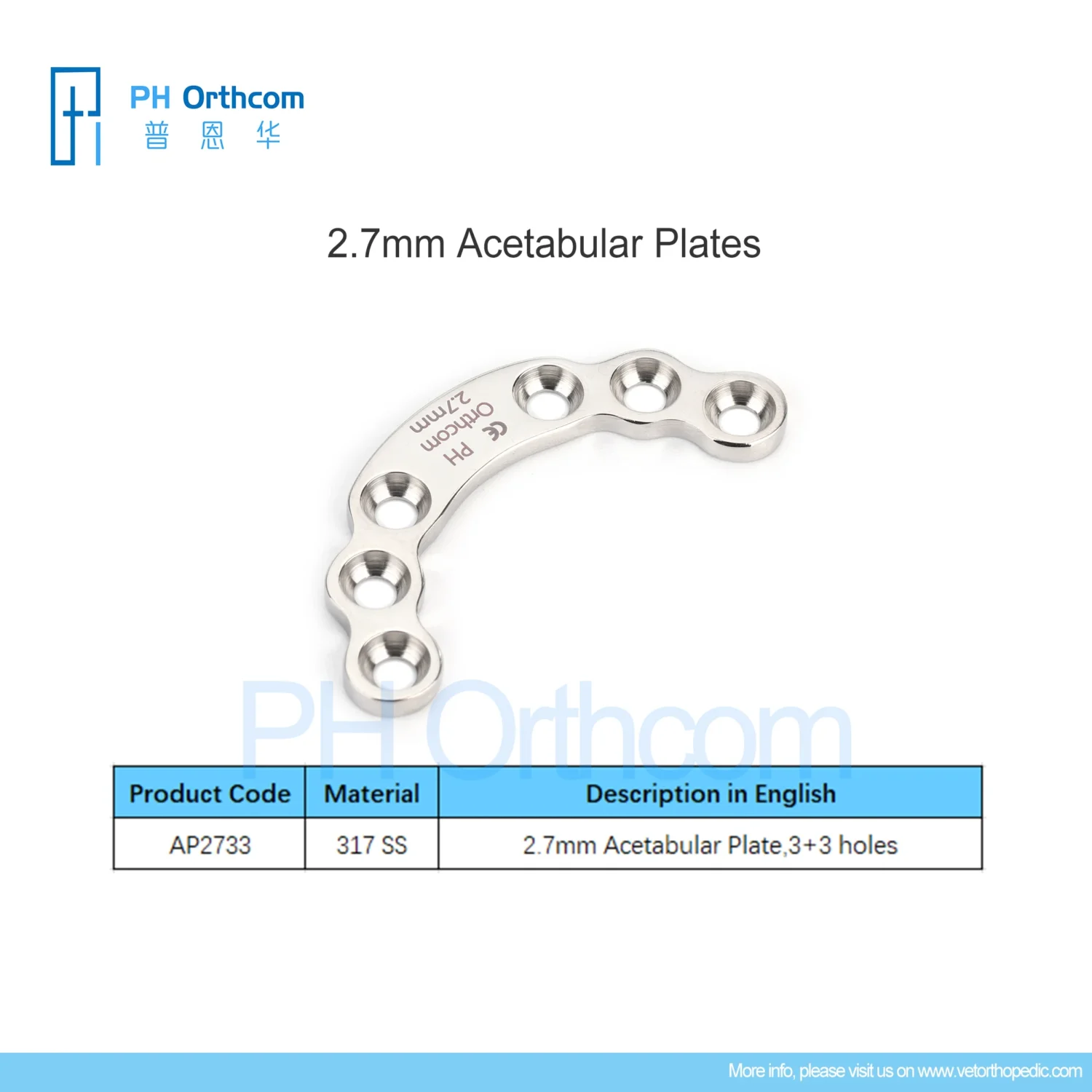

AP2733

2.7 mm Acetabular Plate

holes 3+3


Width 7.0mm, Thickness 2.0mm, Total Length 40.0mm

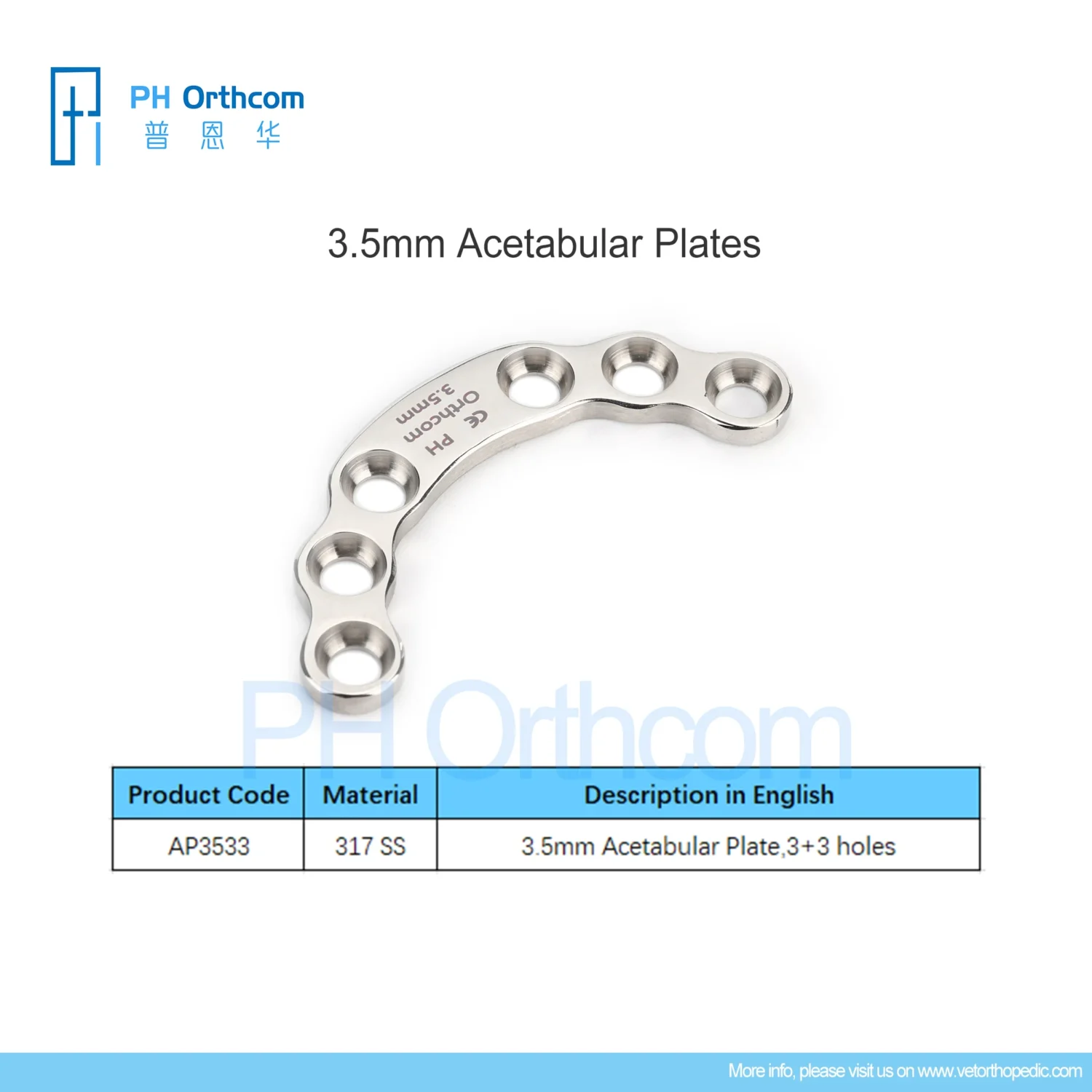

AP3533

3.5 mm Acetabular Plate

holes 3+3


Width 8.1mm, Thickness 1.5mm, Total Length 48.0mm
